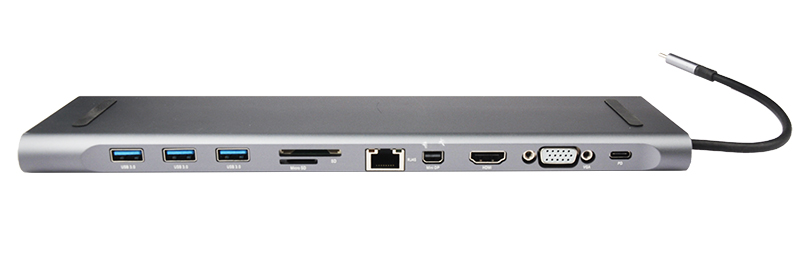

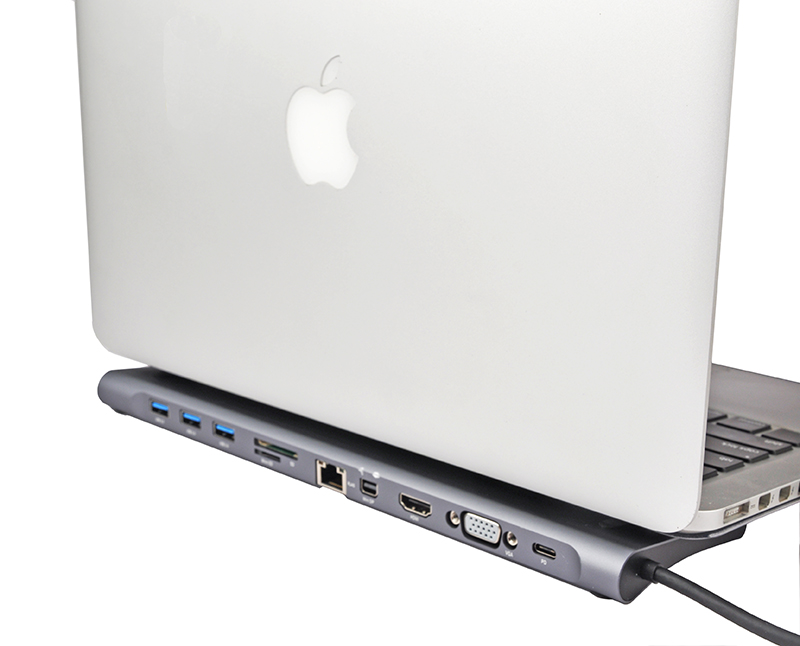

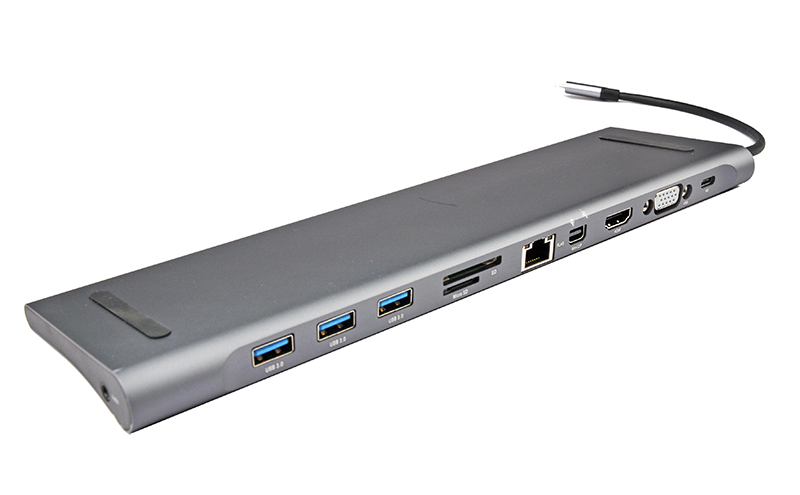

USB3.1 Type C to 3*USB3.0+SD+RJ45+DP+Mini DP+HDMI VGA+Typec(PD)+Audio+Lock Docking Station

product number   , Support HDMI Female, Display Port Female, VGA Female, Mini DisplayPort,USB-C Female, USB 3.0 Female, Gigabit Ethernet, Stereo, SD/TF Card, Micro SD Card, USB-C interface.

Product Category: Type-C Dock Station

Product Description

    1.Support HDMI Female, Display Port Female, VGA Female, Mini DisplayPort,USB-C Female, USB 3.0 Female, Gigabit
      Ethernet, Stereo, SD/TF Card, Micro SD Card, USB-C interface.
    2.Support USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0,1.0
    3.For HDMI, VGA, Display-Port, only support two of them at the same time(DP+VGA/DP+HDMI)
      one HDMI resolution up to 3840x2160P/30HZ.
      one Display Port resolution up to 3840x2160P/30HZ.
      one VGA resolution up to 1920x1200/60HZ.
      DP + HDMI displayport at the same time, max up to 4K/30HZ
      DP + VGA displayport at the same time, max up 1080p/60HZ
      HDMI+VGA displayport at the same time,can't display simultaneously(Not recommneded).
    4.Support 1000Mbps band width for RJ45 port.
    5.USB-C Female support full-features of USB-C(PD2.0 Up to 87W :20V/3.4A)
     ( USB-C male port for Macbook or Google new Chromebook Pixel and other USB-C supported devices)
    6.Stereo port supports both microphone and headphone.
    7.USB-C Male interfaces support plug and play, hot swap.
    8.Support SD/SDHC/SDXC/TF(Version 3.0).
      Support Secure Digital v3.0 UHS-I (Reading speed max 80Mbps, Writing speed max 70Mbps)
      Support Multi Media Card (MMC) specification
      Support Micro SD/SDHC/SDXC (up to 128 GB)
    9.Cable length 15cm
