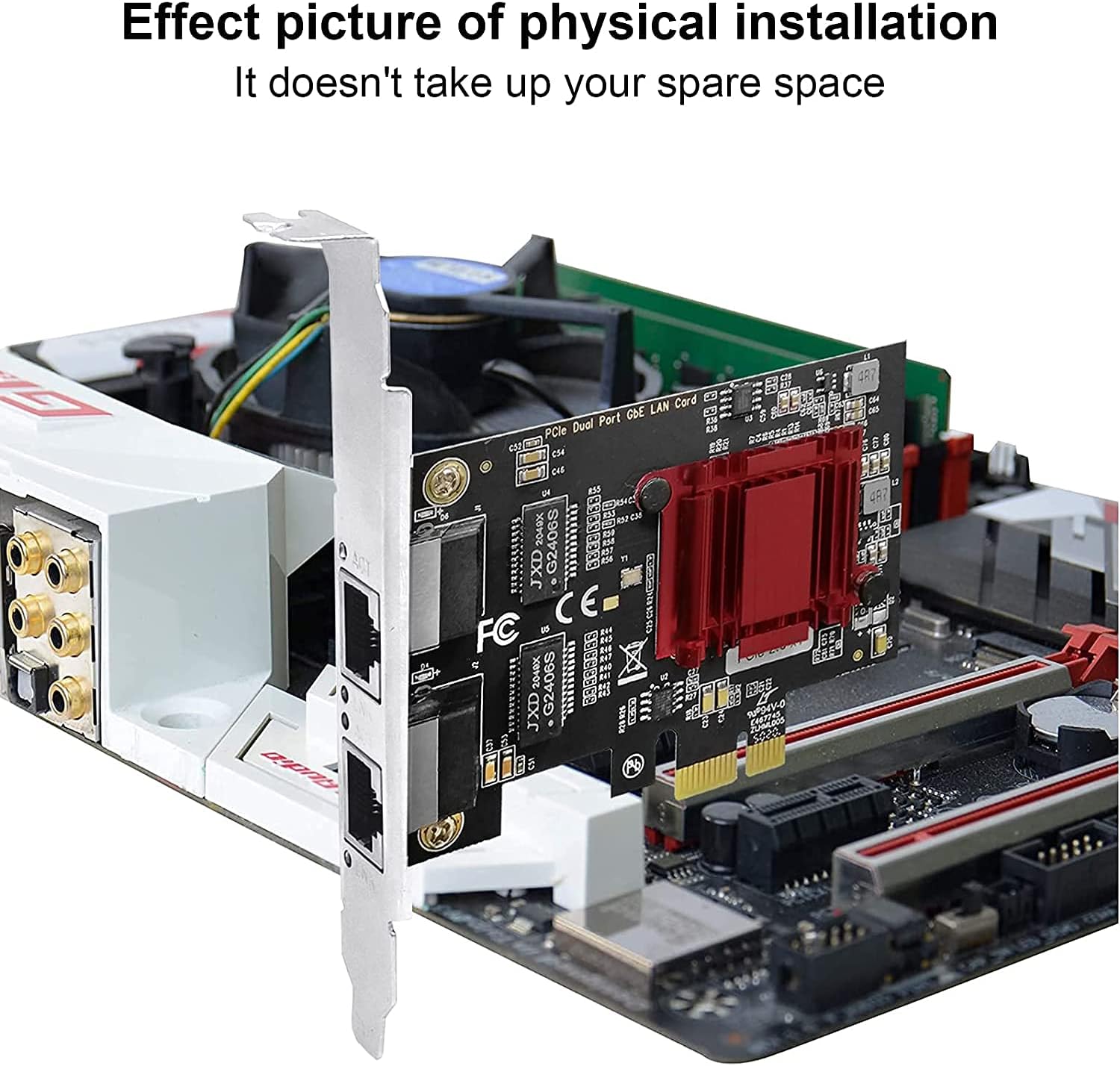

Dual-Port PCIe Gigabit Network Card 1000M PCI Express Ethernet Adapter with Intel 82575/82576 Two Ports LAN NIC Card
product number , Dual-Port PCIe Gigabit Network Card 1000M PCI Express Ethernet Adapter with Intel 82575/82576 Two Ports LAN NIC Card
Product Category： Lan/1394/SATA Card
Product Description
-
Dual-Port PCIe Gigabit Network Card 1000M PCI Express Ethernet Adapter with Intel 82575/82576 Two Ports LAN NIC Card
Features
PCIe base specifiatication 2.0(2.5GT/S) or (5GT/s)
Two 10/100/1000 Mbps compatible RJ45 Ethernet ports
Link and Activity LED indicators
Full and half duplex support
PXE network boot support
Complies with dual port 1GbE PHY device
MDI(Copper)standrd IEEE802.3 Ethernet interface for
1000BASE-T,100BASE-TX,and10BASE-T application(802.3,802.3u,and 802.3ab)
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
PCI Bus Power Management interface Specification Rev1.2
Max 9.5KB of jumbo frames supported
Flow control supports: send/receive PAUSE frames and receive FIFO thresholds
Statistics for management and RMON
Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
64-bit address support for systems using more than 4GB of physical memory
IPv6 wake-up filters
TCP segmentation offload :up to 256KB
IP
