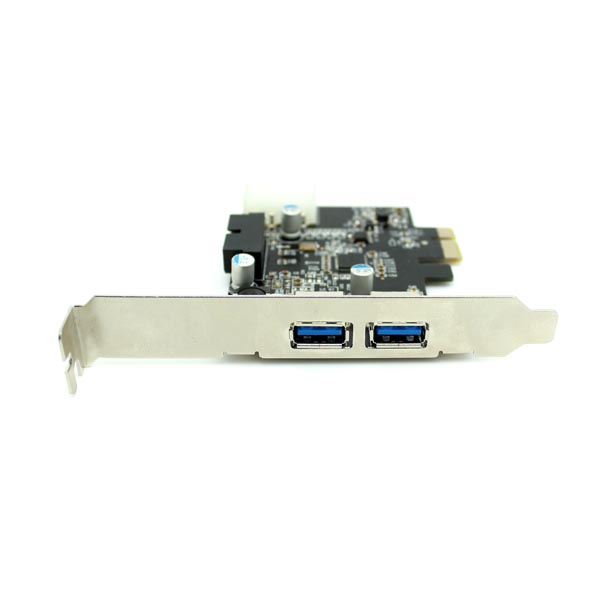

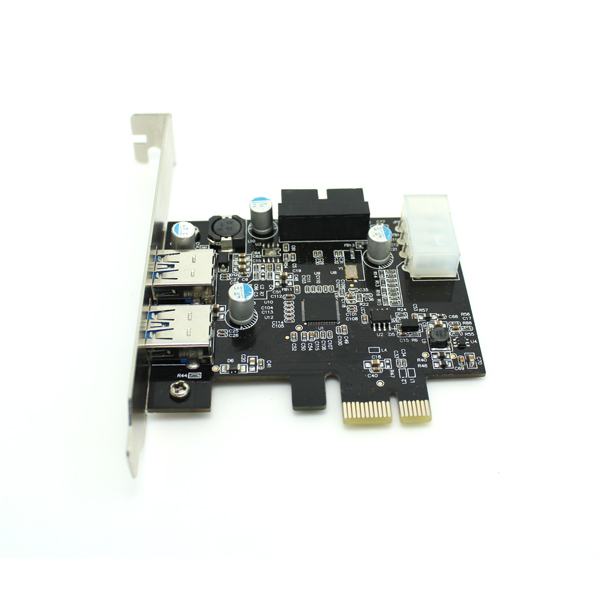

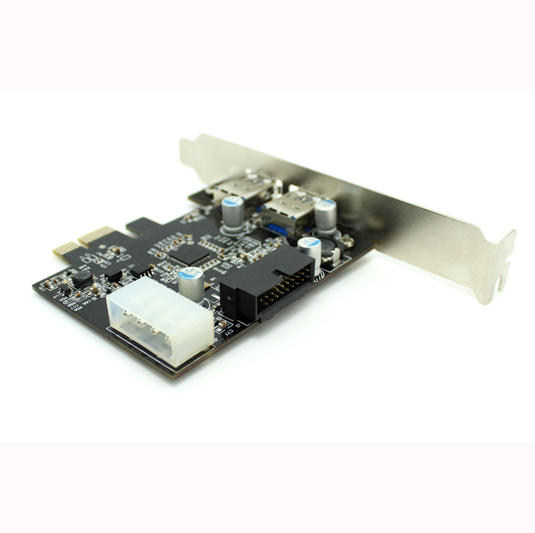

PCI-E to USB 3.0 2 Port Express Card, with 1 USB 3.0 20-pin Connector and 5V 4 Pin Male Power Connector
product number , PCI-E to USB 3.0 2 Port Express Card, with 1 USB 3.0 20-pin Connector and 5V 4 Pin Male Power Connector
Product Category： USB 3.0/3.1Card
Product Description
-
Specifications
• Type: PCI Express to USB Card
• External USB Ports: 2 port USB 3.0
• Internal USB Ports: USB 3.0
• External Ports: 2 port USB 3.0
• Data Transfer Rate: Up to 5.0 Gbps
• Operating Systems Supported: Windows® XP/Vista/7/8/8.1 (32/64 bit)
Features
• Chipset: Renesas uPD720201
• Extend with 2 USB 3.0 downstream ports and 1 USB3.0 20-pin Connector (can expand another two USB 3.0 ports) for standard desktop PC.
• Supports the following speed data rates as follows:
• Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
• Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
• Support USB Battery Charging Specification Revision 1.2
• Fully compliant with PCI Express Base Specification Revision 2.0
• Compliant with Universal Serial Bus 3.0 specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Built-in 4-pin power connector for receiving extra power supply from system
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
