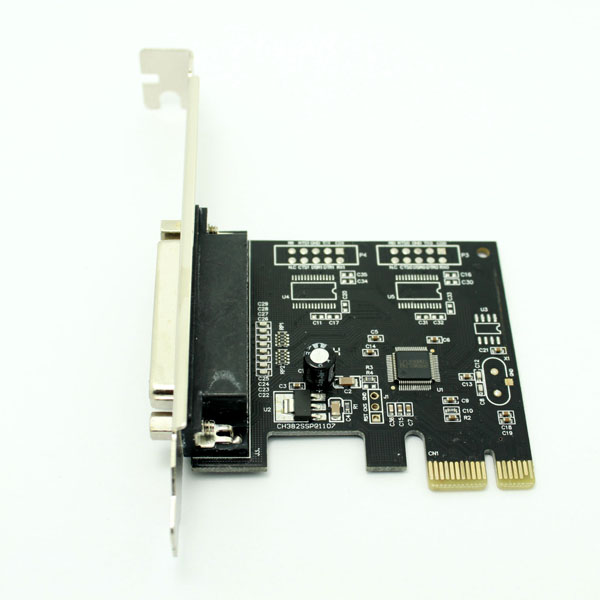

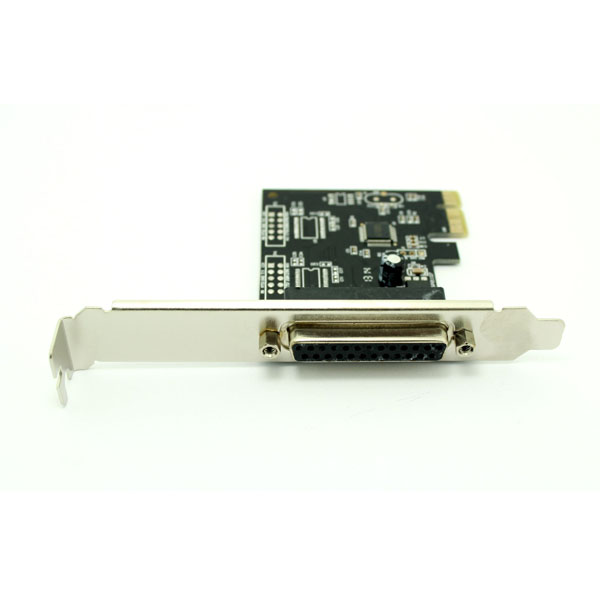

1Port Parallel PCI-express Cards WCH382 Chipset

product number   N-EXP1PW, 1Port Parallel PCI-express Cards WCH382 Chipset

Product Category: Serial/Paraller Card

Product Description

      Features:
      PCI-Express 1x Printer/Parallel Port Card
      1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel
      1-Parallel port with transfer rate up to 1.5Mbyte/s
      Compliant with PCI-Express Revision 1.0a
      Compatible to IEEE 1284 Printer Port
      Fast Data Rates up to 1.5 MBytes/sec
      Built-in 16 Byte FIFO
      Support Plug and Play, SPP, PS2, EPP, ECP Compatible IEEE 1284 Printer Port
      This interface speeds the frequency of data transfer and the high performance of PCI express bus
      Supports PCI express 2.0, compatible with other PCI express interface
      Driver supports Windows 98SE/DOS/Linux/XP/2003/2008/32/64bit Vista/7 /8 operating system
      Parallel port:
      IEEE 1284 compliant parallel port interface, supports SPP/PS2/Epp/ECP modes and centronics interface
      Faster data rates up to 1.5Mbps for parallel port
